Y81-160 hydraulic baling press

    Buy cheap Y81-160 hydraulic baling press from wholesalers

    Buy cheap Y81-160 hydraulic baling press from wholesalers
    • Buy cheap Y81-160 hydraulic baling press from wholesalers

    Y81-160 hydraulic baling press

    Ask Lasest Price
    Brand Name : Anyang
    Certification : CE
    Model Number : Y81-160
    Price : Interview
    Delivery Time : 30 days
    Payment Terms : T/T
    Supply Ability : 100 sets per year
    • Product Details
    • Company Profile

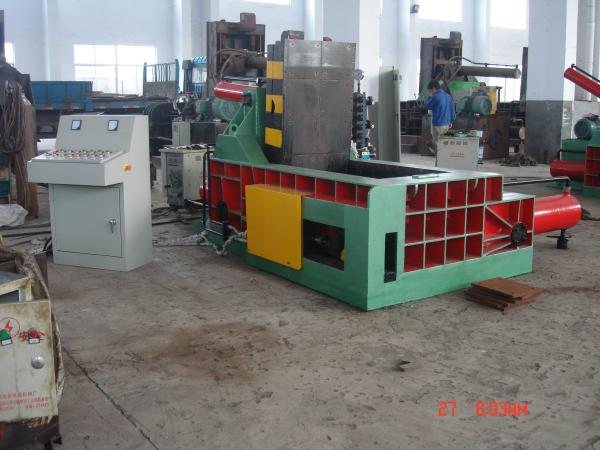

    Y81-160 hydraulic baling press

    Our Y81 series hydraulic metal baling press, it mainly used in metal scraps recycle industry and metal smelting industry.It can compress the metal scrap, steel shavings, steel scrap, iron scrap, aluminium scrap, aluminium shavings,the disintegration of the automobile casing,saste oil drums etc into the cuboid qualified charging.It is very convenient to the transportation and smelting.


    The features:
    1.Adopts the electro hydraulic drive,working stable and safe.
    2.Adopts manual and PLC automatic control,the operation is convenient,performance is reliable.
    3.The ejection of compact have side turn,side push, forward push types.
    4.The standard is full,it is from 63T to 6000T,Y81 series including 14 models,it can meet the different customer requirement.


    The advantage:
    The machine adopts hydraulic drive,the structure is compact, move easy, maintenance easy, seal safe and it's don't need the foundation.The user can set the block size to meet the transportation or storage.It is the best machine can enhance the efficiency of labor,reduce the labour intensity,save the labor and reduce the transportation cost.


    I'm glad to introduce our company is the biggest and the best manufacturer of metal scrap recycling machines in China, we have more than 29 years experience in producing metal scrap briquetting press.We have passed the ISO9001:2000Quality Certification and CE Certificate, we also have excellent after-sale service. Till now, we have exported recycling machine to India, USA, UK, Canada, Morocco, Holand, Mexico, South Africa, Thailand, Greece, Bulgaria, Nigeria etc more than 15 countries.

    Serial

    Item

    Unit

    Type or value

    Main cylinder

    Side cylinder

    Cover cylinder

    Pack out cylinder

    1

    Nominal force

    KN

    1600

    1000

    306

    306

    2

    Inner diameter of oil cylinder

    mm

    φ280

    φ220

    φ135

    φ125

    3

    Piston rod diameter

    mm

    φ180

    φ160

    φ95

    φ70

    4

    Stroke

    mm

    900

    900

    1070

    350

    5

    Max. pressure

    Mpa

    25

    25

    25

    25

    6

    Baled block density

    ≥2.0 t/m3 (Thin machine)

    7

    Motor

    1

    18.5KW

    8

    Oil pump

    1

    80YCY14-1B

    9

    One circle time

    Second

    120

    10

    Baling chamber size

    mm

    1200×800×550

    11

    Final baled block size

    mm

    300×300×300--500

    12

    Baler discharging type


    Side push

    13

    Operation type


    PLC control,Remote operation

    14

    Productivity

    T

    8---10T/shaft(eight hours)

    15

    Water cooler


    5m2

    17

    Machine size

    mm

    Main machine: 3400×3200×2000(mm)

    Oil tank: 1800×1300×1500 ( mm)

    18

    Others


    There are blades with the cover and the two side of baling chamber
